QN22-A1
QIANNIAN
| Quantity: | |
|---|---|
Product Description
With a wide range of uses, it is second only to tactile push button switches and is commonly found in large machinery such as machine tools and elevators.
One of the key advantages of our metal push button switch is its exceptional corrosion resistance and waterproof capabilities. These features make it ideal for use in environments where durability and reliability are crucial. The metal keycap and internal structure of the switch contribute to its long lifespan, ensuring years of uninterrupted operation.
Our metal push button switch with LED illumination is specifically designed to cater to the needs of electronic control equipment, lifting equipment, heavy-duty machine tools, power electronics, transportation vehicles, aerospace, marine vessels, and household appliances. Its compatibility with a wide range of industries and applications makes it a reliable choice for professionals seeking high-quality switches.
Data Sheet
| Product Name | metal push button switch |
| Model | QN22-A1 |
| Electrical parameter | 5A /250VAC |
| Environmental temperature | -20℃～+55℃ |
| Protection grade | IP65 ，IK10 |
| Switch combination | 1N01NC |
| Operation type | latching/momentary |
| Led life | 40000 hours |

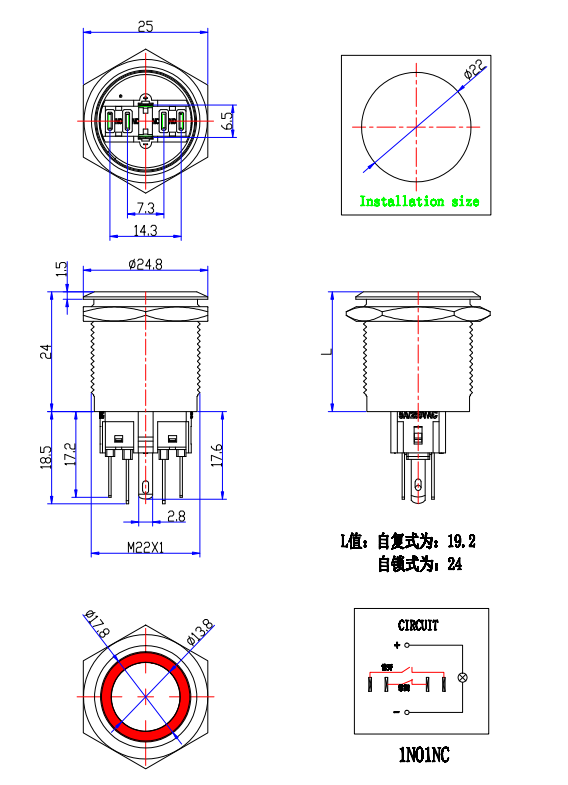

Drawing

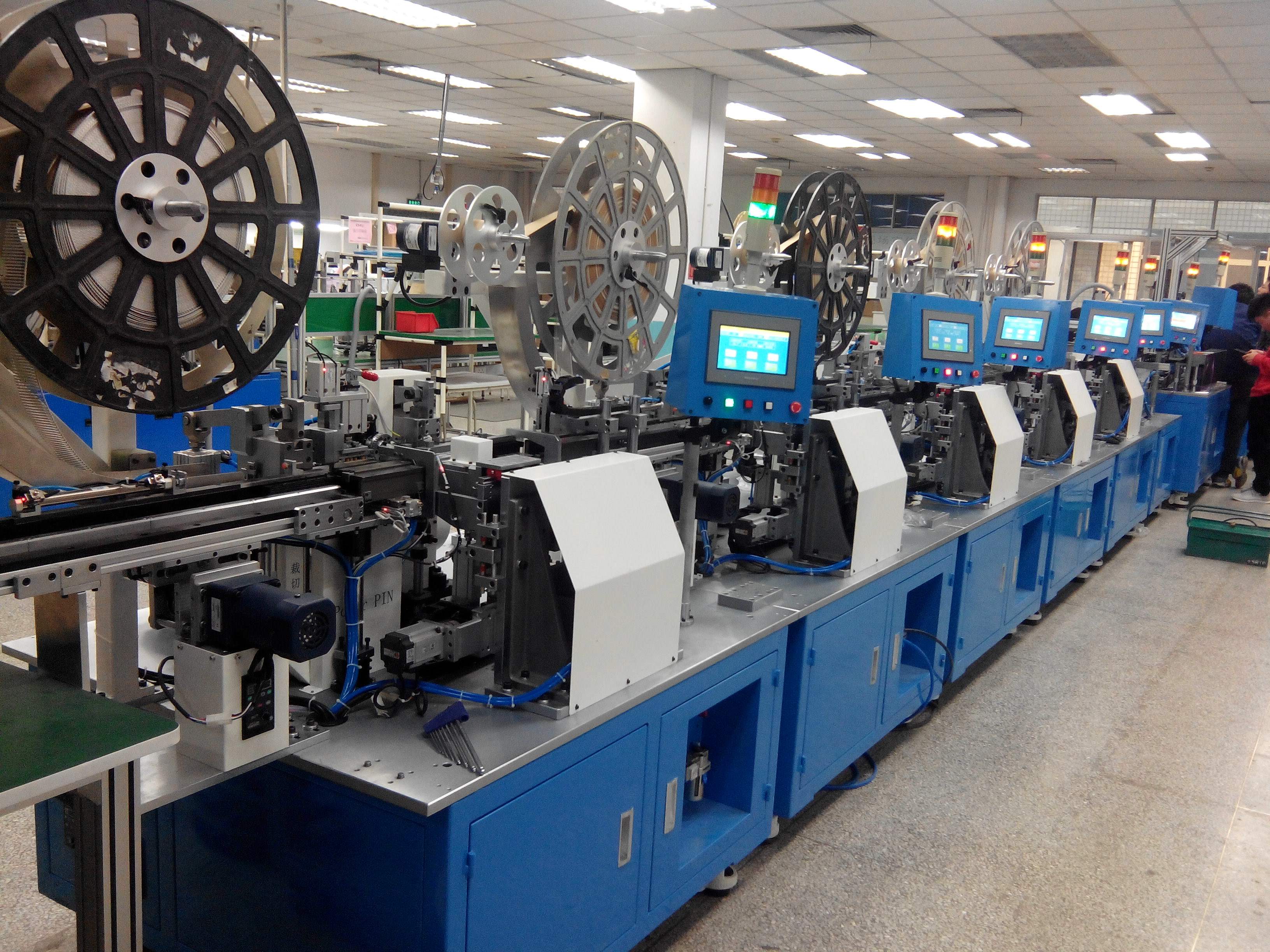

Application
