Self-Locking Stay Put Rest Handle Direct Rotary Knob plastic push button switch

CERTIFIED
Military production
Whole sale
MOQ:  10PCS

  • LA38-C1

  • QIANNIAN

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Introducing our high-quality Plastic Push Button Switch & Indicator Light, designed specifically for diemaking shops. This professional-grade product boasts a knob switch with a 2-position feature, making it an ideal choice for various applications in your shop.

With its 2-position capability, this product offers versatility and convenience. Whether you need to switch between different settings or control specific functions, our switch will provide you with the flexibility you require.

Invest in our Plastic Push Button Switch & Indicator Light today and experience the difference it can make in your diemaking operations. With its professional-grade quality and reliable performance, this product is a must-have for any diemaking shop.

Data Sheet


Product Name
Plastic Push Button Switch & Indicator Light
Model
LA38-C1
Rate current
10A/110VAC 、5A/220VAC、3A/380VAC、2A/500VAC
Environmental temperature
-20℃~+70℃
Protection grade
IP65 ,(panel front)
Switch combination
1N0/1NC/2NO/2NC/1NO1NC
mode of connection
Soldering
Led life
40000Hours

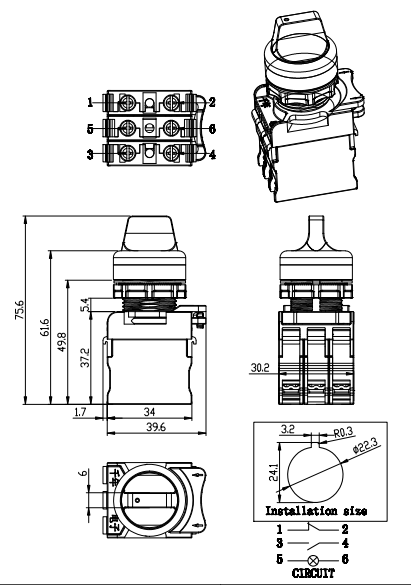

Drawing

LA38-C1 (3)

Application



d0a08a06bba0f418eb957c89169bd8f
