small face Emergency stop mushroom short knob plastic latching push button switch

Mechanical life:>200000 Life
CERTIFIED
Military production

  • LA38-B2

  • QIANNIAN

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Introducing our high-quality Plastic Push Button Switch & Indicator Light, designed to meet the diverse needs of various industries. With a professional tone of voice, we are proud to present this exceptional product that combines reliability and functionality.

Featuring an IP65 rating, our Plastic Push Button Switch & Indicator Light ensures superior protection against dust and water ingress. This makes it suitable for both indoor and outdoor applications, providing peace of mind in even the harshest environments.

Equipped with an emergency stop function, this switch allows for quick and efficient shutdown in critical situations. Its ergonomic design ensures easy access and operation, enhancing safety measures in your workplace.

The arrow light feature adds an extra layer of convenience and clarity to your operations. With a bright and highly visible arrow indicator, it enables clear direction and signaling, allowing for efficient communication in industrial settings.

Crafted with precision and adhering to stringent quality standards, our Plastic Push Button Switch & Indicator Light guarantees long-lasting performance and durability. Its robust construction ensures resistance to wear and tear, ensuring reliable operation over an extended period.

Choose our Plastic Push Button Switch & Indicator Light for your industrial needs, and experience a product that combines professionalism, functionality, and reliability.

Data Sheet


Product Name
Plastic Push Button Switch & Indicator Light
Model
LA38-B2
Rate current
10A/110VAC 、5A/220VAC、3A/380VAC、2A/500VAC
Environmental temperature
-20℃~+70℃
Protection grade
IP65 ,(panel front)
Switch combination
1N0/1NC/2NO/2NC/1NO1NC
mode of connection
Soldering
Led life
40000Hours

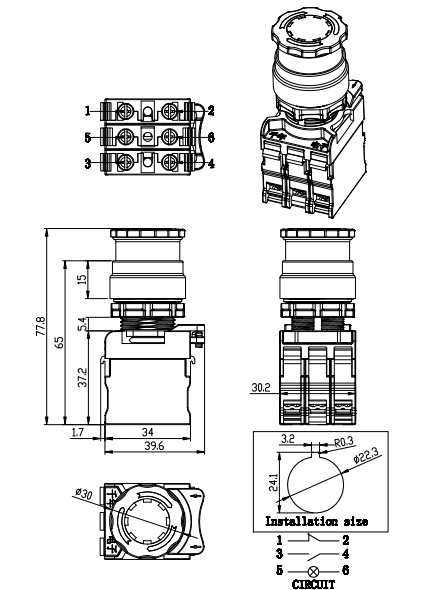

Drawing

LA38-B2

Application



d0a08a06bba0f418eb957c89169bd8f
