QN12-A4
QIANNIAN
| Quantity: | |
|---|---|
Product Description
The 12mm metal push button switch is a commonly used electronic component that finds extensive application in various electronic devices. As the most fundamental type of push button switch, this ordinary switch is primarily used for circuit control. With its simple structure and user-friendly design, it is suitable for a wide range of electronic devices.
Data Sheet
| Product Name | metal push button switch |
| Model | QN12-A4 |
| Electric parameter | 2A/36VDC |
| Operation temperature | -20℃～+55℃ |
| Switch combination | 1NO |
| Operation type | momentary |
| Waterproof grade | IP65、IK08 |
| Led life | without led |

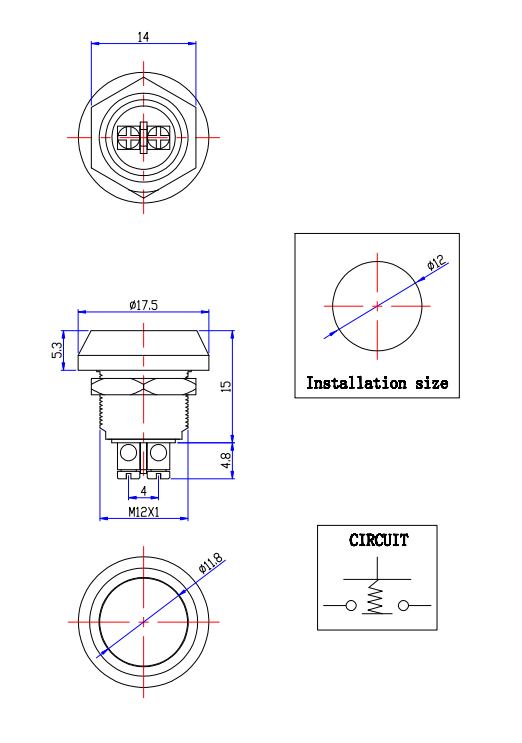

Drawing
Application
