QN19-A2
QIANNIAN
| Quantity: | |
|---|---|
Product Description
Push button switch, designed to meet your electrical control needs. With its reliable functionality and durable construction, this switch is perfect for various applications.
When lightly pressing the metal switch button, the two sets of contact points operate simultaneously. The normally closed contact opens, while the normally open contact closes. This ensures smooth and efficient operation every time.
To enhance usability and prevent accidental operation, each button switch cap is designed with a distinct color. This visual differentiation enables easy identification and differentiation of the switch functions. Choose from a range of colors including red, green, black, yellow, blue, and white.
Our push button switch is versatile and can perform a range of basic control functions. It can be used for starting, stopping, reversing, speed control, and interlocking operations. With its reliable performance and professional design, this switch is a must-have for any electrical control setup.
Data Sheet
| Product Name | metal push button switch |
| Model | QN19-A2 |
| Electric parameter | 3A/250VAC |
| Environmental temperature | -20℃～+55℃ |
| Protection grade | IP65 ，IK08 |
| Switch combination | 1N0 |
| Operation type | momentary |
| Led life | without led |

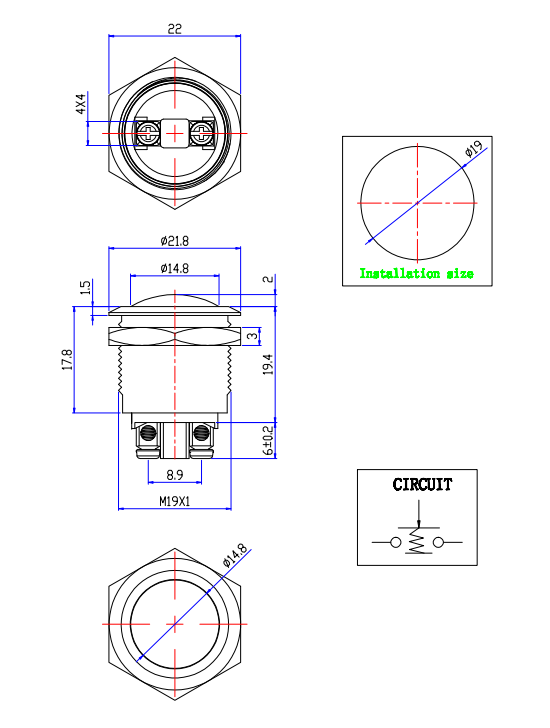

Drawing

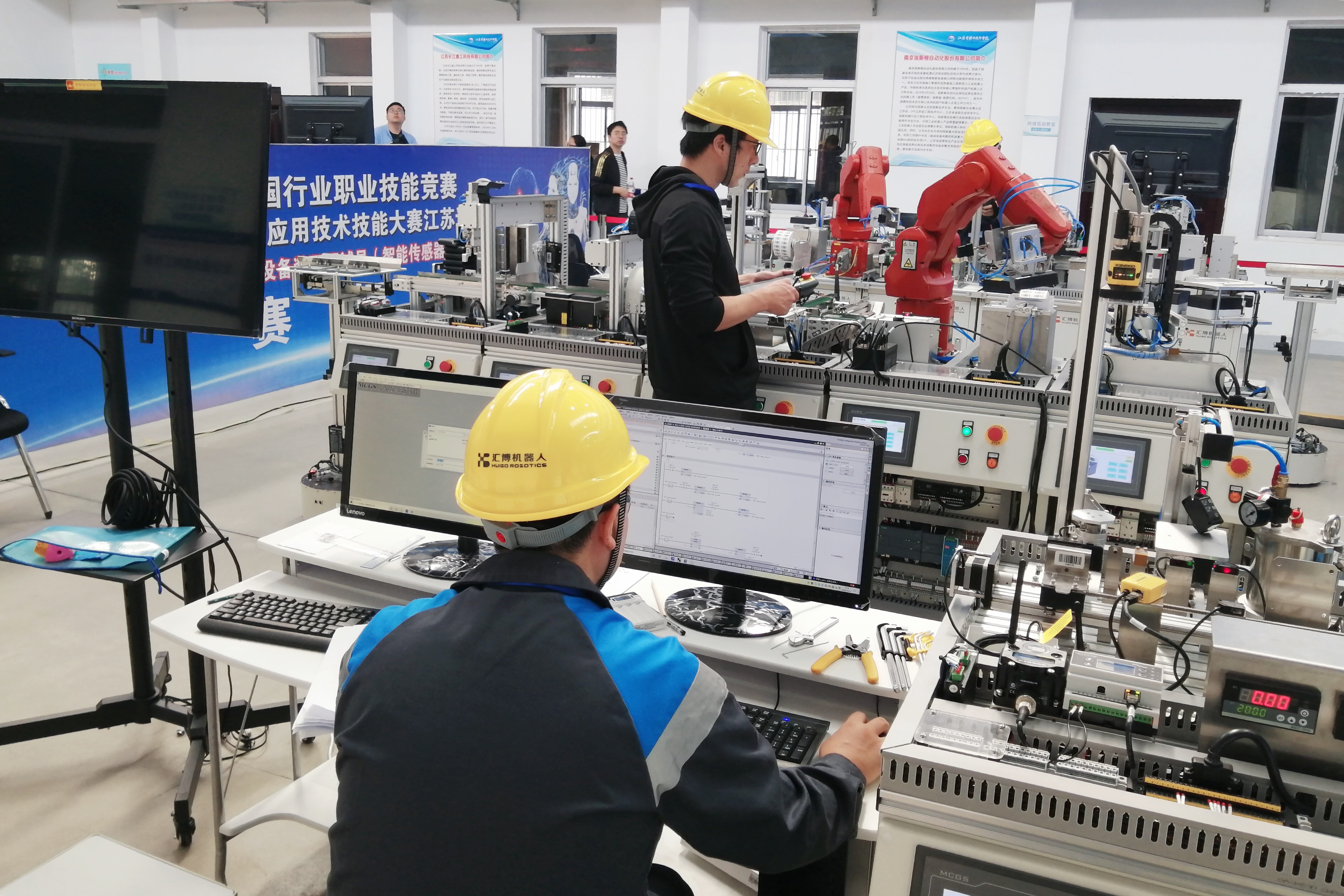

Application
Product Description
Push button switch, designed to meet your electrical control needs. With its reliable functionality and durable construction, this switch is perfect for various applications.
When lightly pressing the metal switch button, the two sets of contact points operate simultaneously. The normally closed contact opens, while the normally open contact closes. This ensures smooth and efficient operation every time.
To enhance usability and prevent accidental operation, each button switch cap is designed with a distinct color. This visual differentiation enables easy identification and differentiation of the switch functions. Choose from a range of colors including red, green, black, yellow, blue, and white.
Our push button switch is versatile and can perform a range of basic control functions. It can be used for starting, stopping, reversing, speed control, and interlocking operations. With its reliable performance and professional design, this switch is a must-have for any electrical control setup.
Data Sheet
| Product Name | metal push button switch |
| Model | QN19-A2 |
| Electric parameter | 3A/250VAC |
| Environmental temperature | -20℃～+55℃ |
| Protection grade | IP65 ，IK08 |
| Switch combination | 1N0 |
| Operation type | momentary |
| Led life | without led |
Drawing
Application
