English
QN28-A2
QIANNIAN
| Quantity: | |
|---|---|
Product Description
Push button switch, designed to meet the demanding needs of various industries. Each switch features two sets of contact points, including a normally open contact and a normally closed contact.
Our push button switch is widely utilized in mechanical equipment, CNC lathes, power engineering, electronic devices, control systems, medical equipment, banking, shipbuilding, household appliances, industrial automation, and information technology industries. It has been recognized as one of the preferred products for domestic high-end users.
With its reliable performance and durable construction, our push button switch ensures seamless operation and long-lasting functionality. Trust in our product to provide you with the utmost reliability and efficiency for your diverse applications.
Data Sheet
| Product Name | metal push button switch |
| Model | QN28-A2 |
| Electrical parameter | 5A /250VAC |
| Environmental temperature | -20℃～+55℃ |
| Protection grade | IP65 ，IK10 |
| Switch combination | 1N01NC/2N02NC |
| Operation type | latching/momentary |
| Led life | 40000 hours |

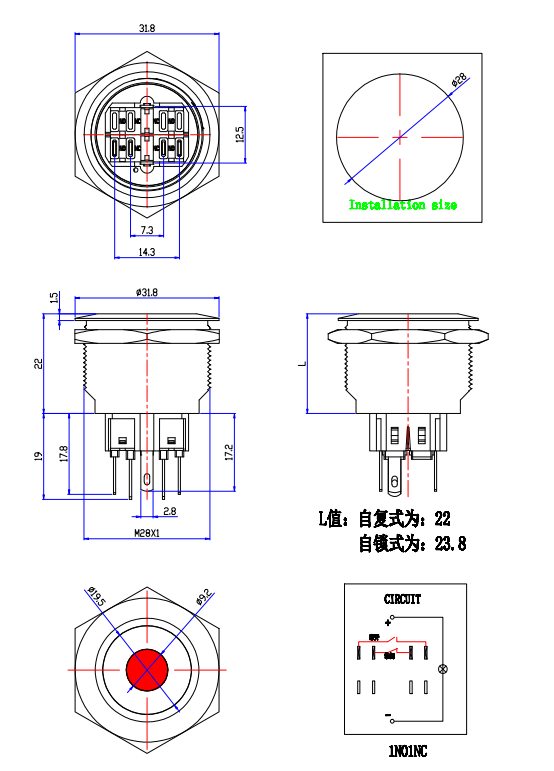

Drawing
Application
