QN25-A1
QIANNIAN
| Quantity: | |
|---|---|
Product Description
The push button switch is a manual and generally self-resetting low-voltage electrical device. It is commonly used in circuits to issue start or stop commands, controlling the connection and disconnection of coil currents in electromagnetic starters, contactors, relays, and other electrical devices. This switch is designed to instantly activate upon pressing and reset upon release, making it ideal for connecting and disconnecting small current circuits. It is typically used in control circuits with alternating or direct voltages below 250V and currents less than 5A. While it is not typically used to directly manipulate the main circuit, it can also be utilized in interlocking circuits.
Data Sheet
| Product Name | metal push button switch |
| Model | QN25-A1 |
| Electrical parameter | 5A /250VAC |
| Environmental temperature | -20℃～+55℃ |
| Protection grade | IP67 ，IK10 |
| Switch combination | 1N01NC/2N02NC |
| Operation type | latching/monentary |
| Led life | 40000 hours |

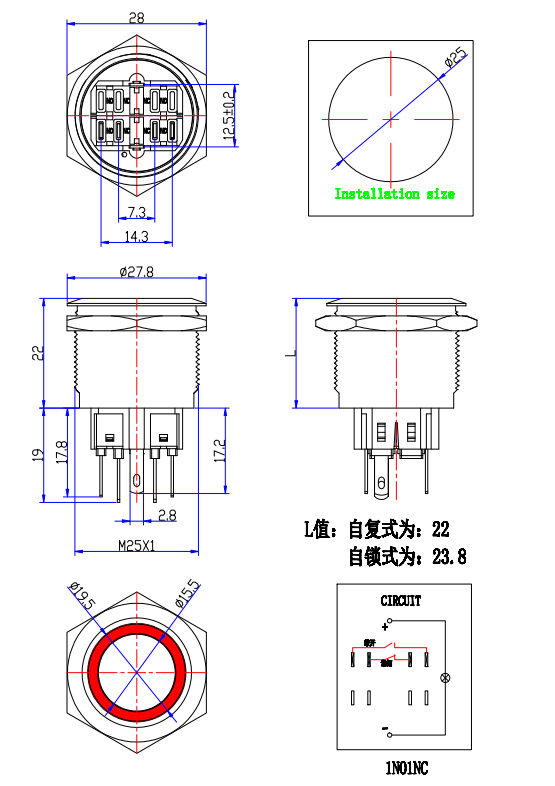

Drawing

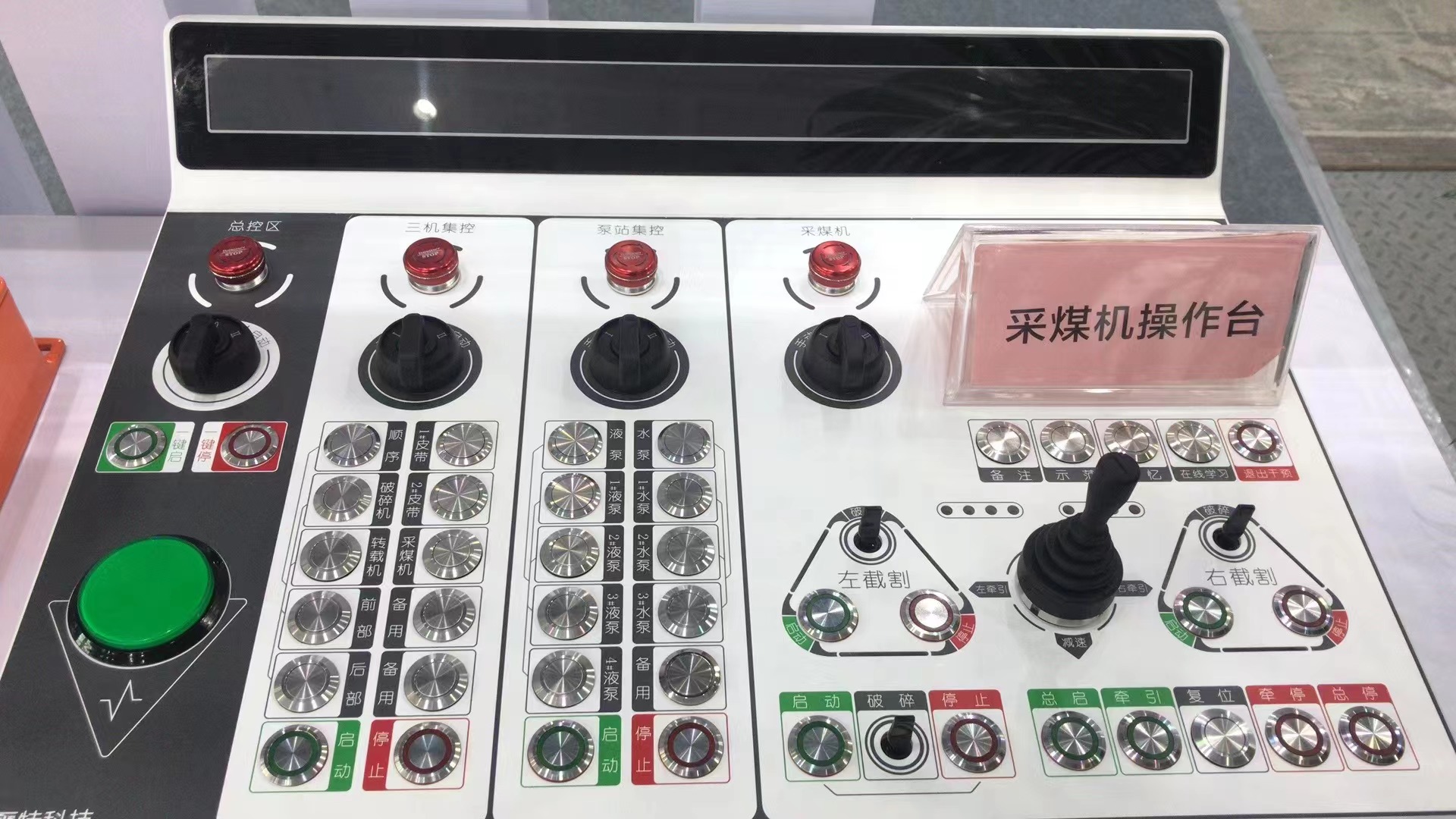

Application
