LA38-D1
QIANNIAN
| Quantity: | |
|---|---|
Product Description
Our Plastic Push Button Switch and Indicator Light is engineered with utmost precision and quality. Crafted from durable plastic materials, this switch guarantees long-lasting performance and reliability. Its sleek design seamlessly integrates into any system, adding a touch of professionalism.
With the key switch functionality, you can easily control access to your security and protection system. The 2-position feature provides added convenience, allowing you to effortlessly switch between two modes or settings. This ensures optimal safety and protection for your premises.
Data Sheet
| Product Name | Plastic Push Button Switch & Indicator Light |
| Model | LA38-D1 |
| Rate current | 10A/110VAC 、5A/220VAC、3A/380VAC、2A/500VAC |
| Environmental temperature | -20℃～+70℃ |
| Protection grade | IP65 ，（panel front） |
| Switch combination | 1N0/1NC/2NO/2NC/1NO1NC |
| mode of connection | Soldering |
| Led life | 40000Hours |

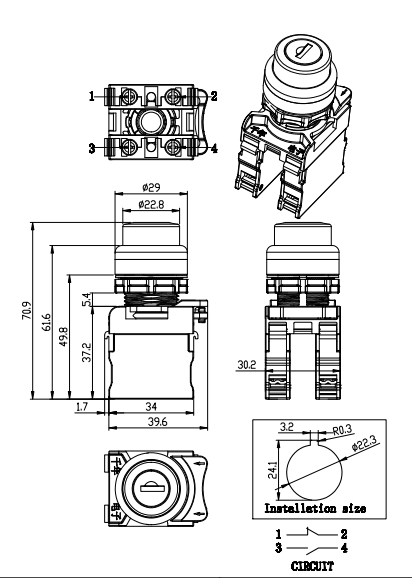

Drawing
Application
Product Description
Our Plastic Push Button Switch and Indicator Light is engineered with utmost precision and quality. Crafted from durable plastic materials, this switch guarantees long-lasting performance and reliability. Its sleek design seamlessly integrates into any system, adding a touch of professionalism.
With the key switch functionality, you can easily control access to your security and protection system. The 2-position feature provides added convenience, allowing you to effortlessly switch between two modes or settings. This ensures optimal safety and protection for your premises.
Data Sheet
| Product Name | Plastic Push Button Switch & Indicator Light |
| Model | LA38-D1 |
| Rate current | 10A/110VAC 、5A/220VAC、3A/380VAC、2A/500VAC |
| Environmental temperature | -20℃～+70℃ |
| Protection grade | IP65 ，（panel front） |
| Switch combination | 1N0/1NC/2NO/2NC/1NO1NC |
| mode of connection | Soldering |
| Led life | 40000Hours |
Drawing
Application
