12mm flat head momentary IP65 push button switch

Product Description

The push button switch features a unique design that ensures seamless functionality. For the start button, simply press down the button cap to close the contacts, and upon release, the contacts automatically open and reset. Conversely, the stop button operates in the opposite manner. Pressing down the button cap separates the contacts, and upon release, the contacts automatically close and reset.

In addition, this switch also includes a composite button feature. When the button cap is pressed, the bridge-type movable contact moves downwards, causing the normally closed contact to open before the normally open contact closes. Upon releasing the button cap, the normally open contact opens first, followed by the reset of the normally closed contact.

Data Sheet

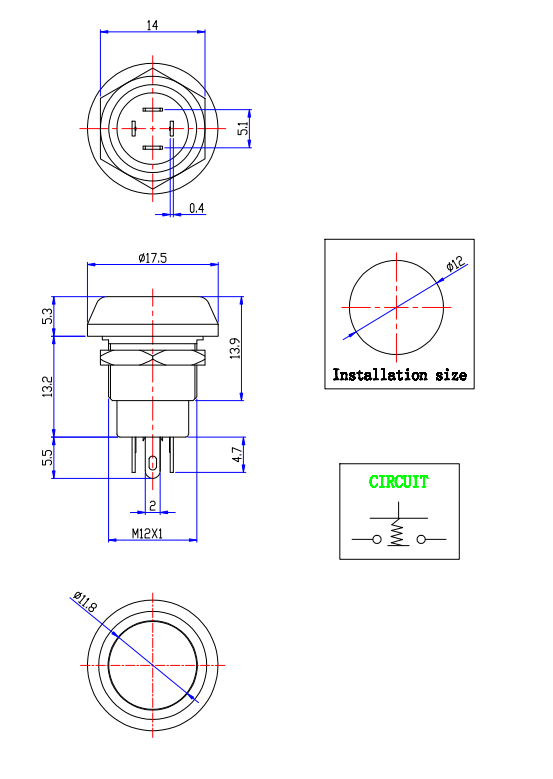

Drawing

Application
