QN16-A5
QIANNIAN
| Quantity: | |
|---|---|
Product Description
This switch is designed with utmost precision and is composed of various components including a button cap, reset spring, fixed contact, movable contact, housing, and connecting rod.
The metal push button switch offers exceptional reliability and durability. Its static state ensures that the contacts remain in their open or closed positions, depending on the type of button. We offer three types of buttons - the start button (also known as the normally open button), the stop button (also known as the normally closed button), and the combination button (which combines both normally open and normally closed contacts).
For the start button, simply press the button cap to close the contacts. Once released, the contacts automatically reset and open. On the other hand, the stop button functions in the opposite manner. Pressing the button cap opens the contacts, and upon release, the contacts automatically reset and close.
Our metal push button switch is not only easy to operate but also ensures reliable and consistent performance. Its robust construction and high-quality materials make it suitable for a wide range of applications. Whether you need a start button, stop button, or a combination button, our metal push button switch is the perfect choice for your professional needs.
Data Sheet
| Product Name | metal push button switch |
| Model | QN16-A5 |
| Electric paremeter | 3A/250VAC |
| Environmental temperature | -20℃～+55℃ |
| Protection grade | IP65,IK08 |
| Switch combination | 1NO |
| Operation type | momentary |
| Led life | without led |

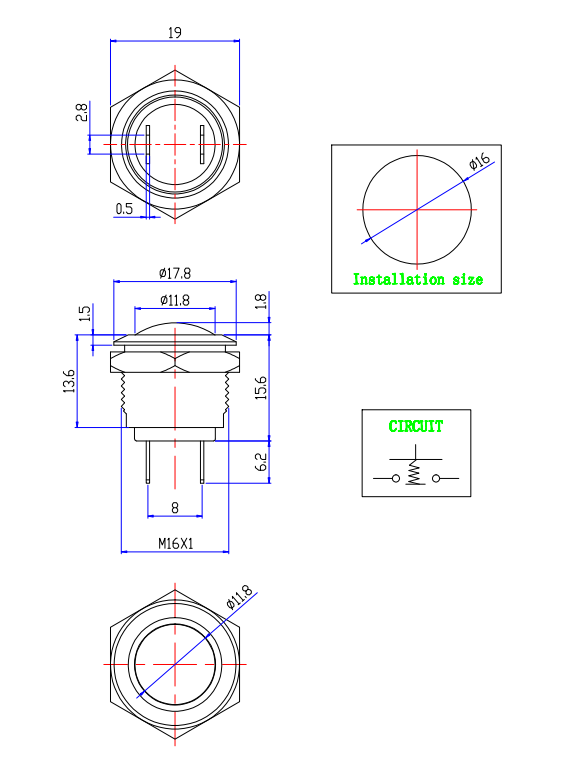

Drawing
Application
