QN16-A3
QIANNIAN
| Quantity: | |
|---|---|
Product Description
The metal push button switch is commonly used to send start or stop commands in circuits, allowing for the control of electromagnetic starters, contactors, relays, and other electrical coil currents.
This switch is designed to be quick and efficient, with a press-to-action and release-to-reset mechanism. It is perfect for connecting and disconnecting small current circuits. It is suitable for use in both AC and DC voltage systems, with a maximum voltage rating of 440V. Additionally, it is ideal for control circuits with currents less than 5A.
Please note that while this switch is not intended for direct manipulation of the main circuit, it can also be used in interlock circuits.
Data Sheet
| Product Name | metal push button switch |
| Model | QN16-A3 |
| Electric paremeter | 3A/250VAC |
| Environmental temperature | -20℃～+55℃ |
| Protection grade | IP65,IK08 |
| Switch combination | 1NO |
| Operation type | momentary |
| Led life | without led |

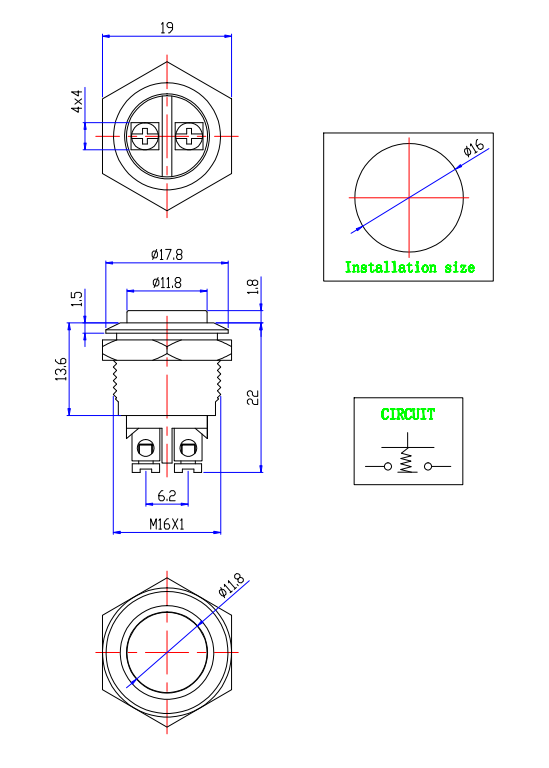

Drawing
Application
