QN16-A1
QIANNIAN
| Quantity: | |
|---|---|
Product Description
With its corrosion resistance and excellent dust and water protection, this switch is second only to touch button switches in popularity. It finds extensive use in large machinery, elevators, and other mechanical and electrical equipment.
The durability of our metal push button switch is further enhanced by its metal keycap and internal structure, ensuring a long lifespan. This switch is built to withstand the test of time, providing you with a reliable and long-lasting solution.
Our metal push button switch with a built-in light is particularly suitable for electronic control equipment, lifting equipment, heavy-duty machinery, power electronics, transportation vehicles, aerospace, marine, and household appliances. It is designed to meet the demanding requirements of various industries, guaranteeing optimal performance and safety.
Data Sheet
| product Name | metal push button switch |
| model | QN16-A1 |
| electrical parameter | 3A/250VAC |
| environmental temperature | -20℃～+55℃ |
| protection grade | IP65,IK08 |
| switch combination | 1NO |
| operation type | momentary |
| led life | without led |

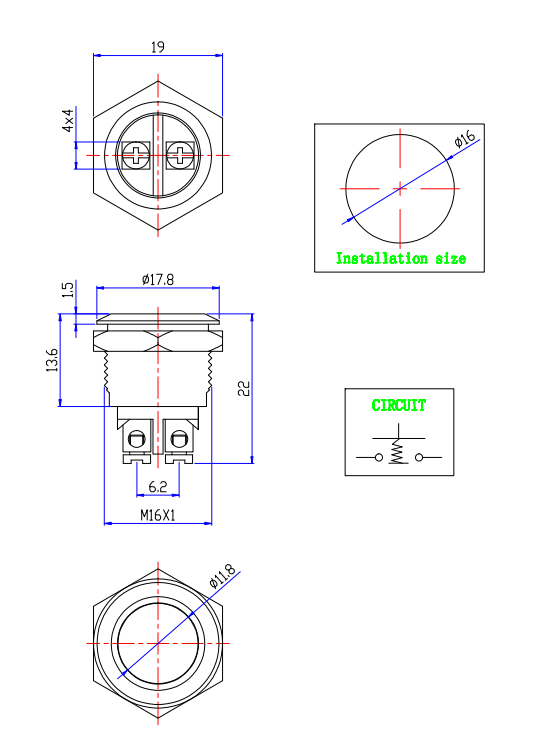

Drawing
Application
Product Description
With its corrosion resistance and excellent dust and water protection, this switch is second only to touch button switches in popularity. It finds extensive use in large machinery, elevators, and other mechanical and electrical equipment.
The durability of our metal push button switch is further enhanced by its metal keycap and internal structure, ensuring a long lifespan. This switch is built to withstand the test of time, providing you with a reliable and long-lasting solution.
Our metal push button switch with a built-in light is particularly suitable for electronic control equipment, lifting equipment, heavy-duty machinery, power electronics, transportation vehicles, aerospace, marine, and household appliances. It is designed to meet the demanding requirements of various industries, guaranteeing optimal performance and safety.
Data Sheet
| product Name | metal push button switch |
| model | QN16-A1 |
| electrical parameter | 3A/250VAC |
| environmental temperature | -20℃～+55℃ |
| protection grade | IP65,IK08 |
| switch combination | 1NO |
| operation type | momentary |
| led life | without led |
Drawing
Application
