QN22-A3
QIANNIAN
| Quantity: | |
|---|---|
Product Description
This switch is designed with a robust structure that includes an indicator light, button cap, reset spring, bridge-style dynamic contacts, static contacts, and terminal blocks.
Our metal push button switch is equipped with two pairs of contacts, providing both a normally open (NO) and a normally closed (NC) contact configuration. When the button is pressed, both pairs of contacts engage simultaneously, causing the NC contacts to open and the NO contacts to close.
This switch is perfect for applications that require reliable and precise control. The metal construction ensures durability and longevity, making it suitable for use in various industries, including industrial automation, machinery, and control systems.
Data Sheet
| Product Name | metal push button switch |
| Model | QN22-A3 |
| Electric parameter | 5A /250VAC |
| Environmental temperature | -20℃～+55℃ |
| Protection grade | IP65 ，IK10 |
| Switch combination | 1N01NC |
| Operation type | latching/momentary |
| Led life | 40000 hours |

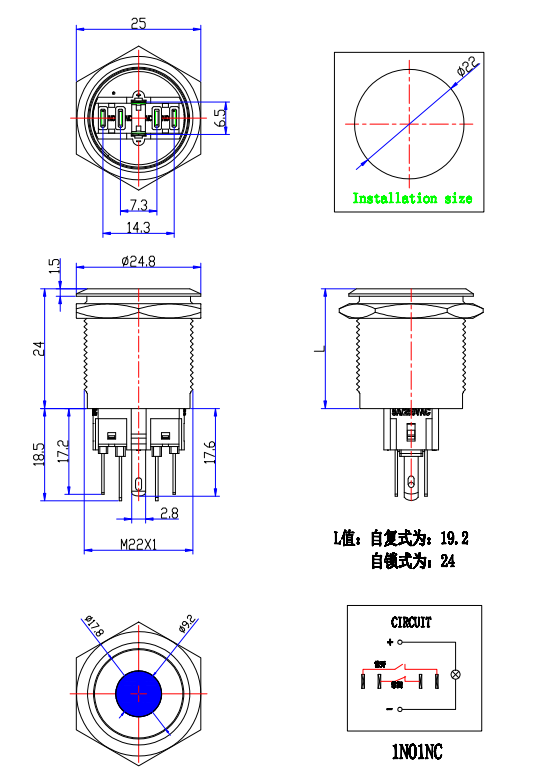

Drawing

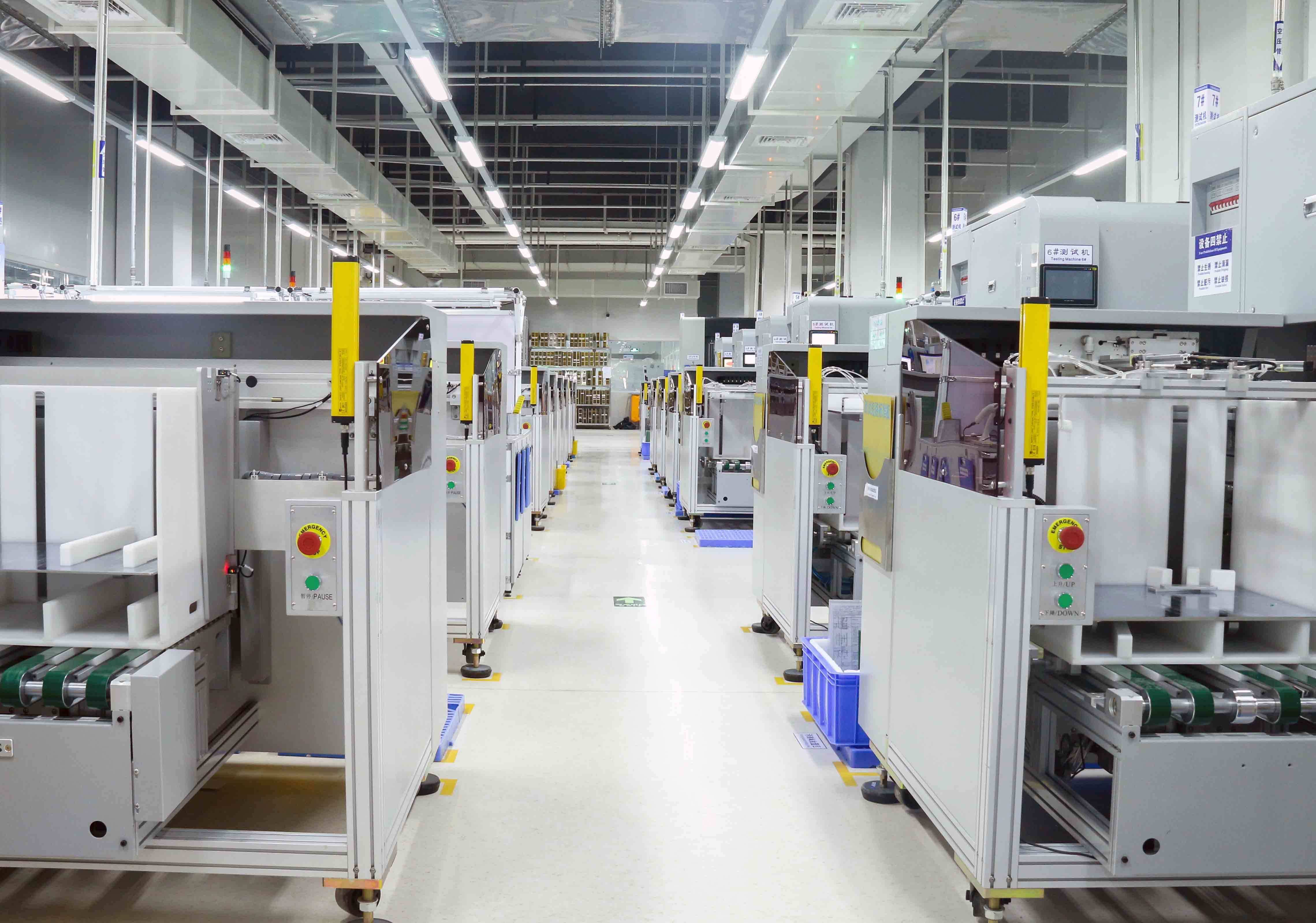

Application
