QN8-A1
QIANNIAN
| Quantity: | |
|---|---|
Product Description
Push button switch, designed to provide efficient and reliable control for a wide range of applications.
Our push button switch is capable of performing essential functions such as start, stop, forward and reverse rotation, variable speed control, and interlocking. With two pairs of contacts, each button switch consists of a normally open contact and a normally closed contact. When the button is pressed, both pairs of contacts activate simultaneously, causing the normally closed contact to open and the normally open contact to close.
This versatile switch is widely used in various household appliances, access control and security systems, industrial control cabinets, medical equipment, machine tools, and other industrial automation devices.
Data Sheet
| Product Name | metal push button switch |
| Model | QN8-A1 |
| Electrical parameter | 0.1A/24VDC |
| Environmental temperature | -20℃～+55℃ |
| Switch combination | 1NO |
| Operation type | momentary |
| Protection grade | IP65、IK08 |
| Led life | without led |

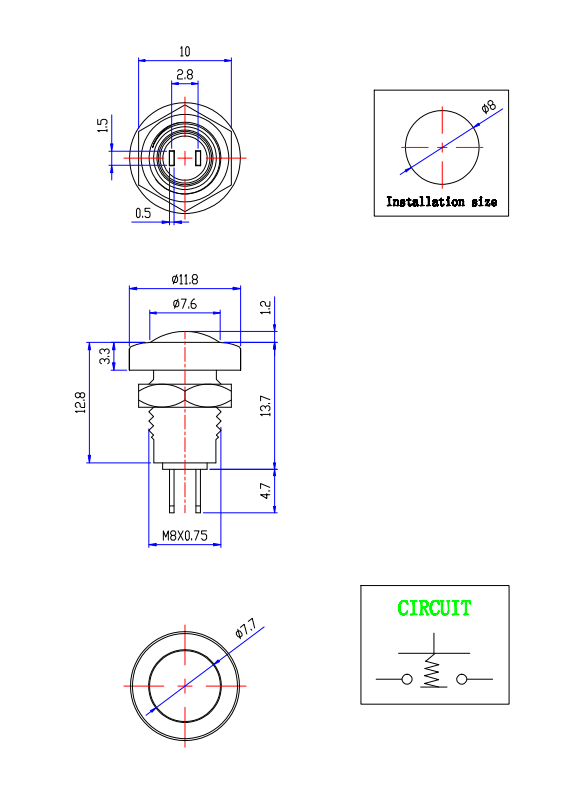

Drawing
Application
