QN12-A2
QIANNIAN
| Quantity: | |
|---|---|
Product Description
Push button switch, is also known as a control button. This manual switch is designed to provide reliable and efficient control for low voltage electrical systems. Which commonly used in circuits to initiate or stop specific commands, allowing for the control of electrical coil currents in devices such as electromagnetic starters, contactors, and relays.
Our push button switch is suitable for both AC and DC voltages, with a maximum rating of 440V. It is specifically designed for control circuits with currents below 5A.
With its durable construction and easy installation, our push button switch is an ideal choice for various applications in both residential and commercial settings. Its versatility allows it to be used in interconnecting circuits as well.
Data Sheet
| Product Name | metal push button switch |
| Model | QN12-A2 |
| Electric parameter | 1A/36VDC |
| Operation temperature | -20℃～+55℃ |
| Switch combination | 1NO/1NC |
| Operation type | momentary |
| Waterproof grade | IP65、IK08 |
| Led life | without led |

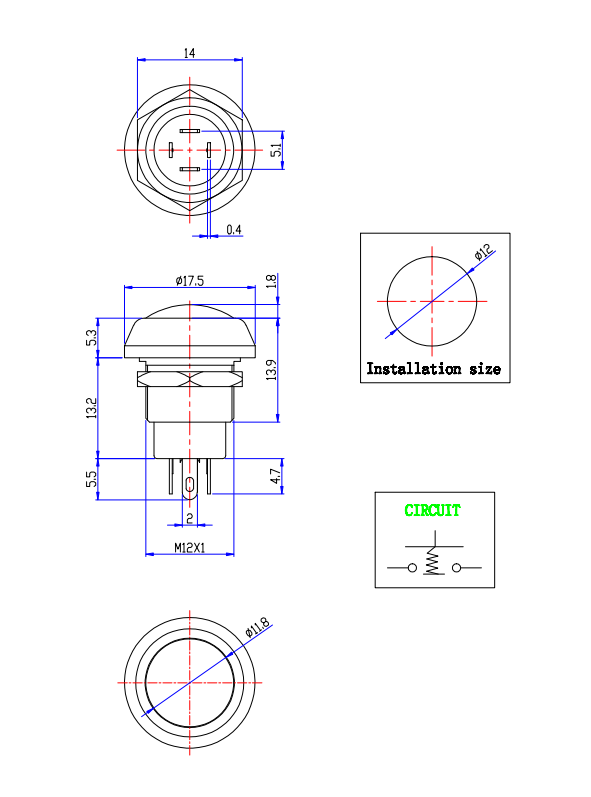

Drawing
Application
