QN12-A1
QIANNIAN
| Quantity: | |
|---|---|
Product Description
The push button switch is a professional-grade electrical device that utilizes a button to activate a transmission mechanism, allowing for the connection or disconnection of electrical circuits through the movement of its contacts. With a simple yet highly effective design, the push button switch is widely used in various electrical control systems, particularly in manual control applications for controlling contactors, relays, and magnetic starters. Its versatility and reliability make it an essential component in electrical automation circuits.
Data Sheet
| Product Name | metal push button switch |
| Model | QN12-A1 |
| Electric parameter | 1A/36VDC |
| Operation temperature | -20℃～+55℃ |
| Switch combination | 1NO/1NC |
| Operation type | momentary |
| Protection grade | IP65、IK08 |
| Led life | without led |

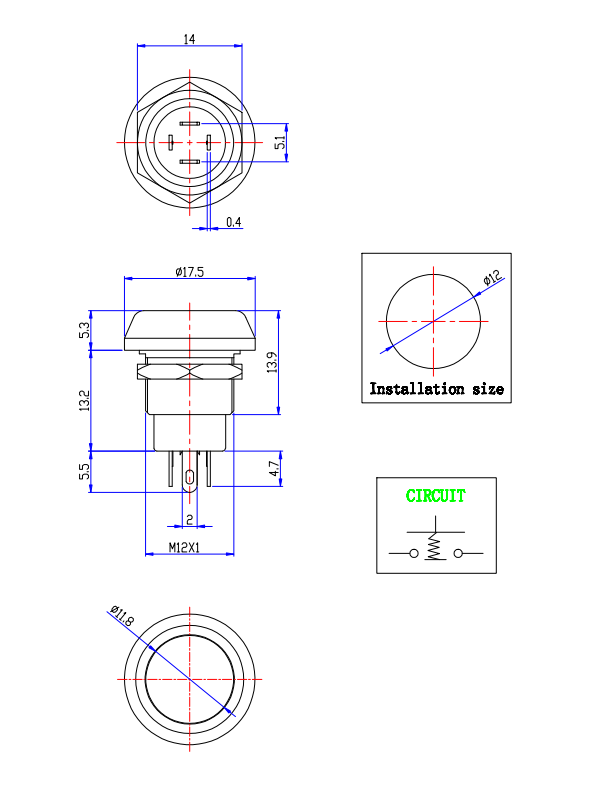

Drawing
Application
