QN12-A3
QIANNIAN
| Quantity: | |
|---|---|
Product Description
To prevent accidental operation, our push button switch features distinct markings and different colors. The colors available include red, yellow, blue, white, black, and green. The red color typically signifies "stop" or "dangerous" situations, while green represents "start" or "on" positions. For emergency situations, our switch is equipped with a red mushroom-shaped button for immediate action.
Safety is our top priority, which is why our push button switch is designed with a metallic protective guard ring. This guard ring ensures that accidental contact with the button is minimized, preventing any unintended actions. Additionally, the button plate and box are made of high-quality metal and are connected to the mechanical ground bus for enhanced safety and reliability.
With its professional design and attention to detail, our push button switch is the ideal choice for industries such as manufacturing, automation, and control systems. Trust in our product to provide you with the utmost precision and safety in your operations.
Data Sheet
| Product name | metal push button switch |
| Product model | QN12-A3 |
| Electrical parameter | 2A/36VDC |
| Environmental temperature | -20℃～+55℃ |
| Switch combination | 1NO |
| Operation type | momentary |
| Protection grade | IP65、IK08 |
| Led life | without led |

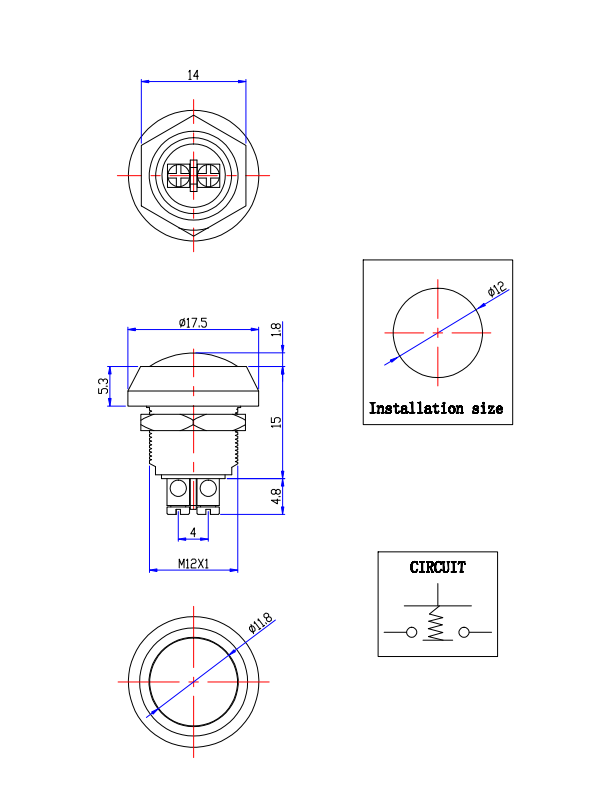

Drawing
Application
