Flat round head stainless steel push button switch

Flat head
Screw terminal
  • QN12-A4

  • QIANNIAN

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description


Push button switch, commonly known as a button switch. This essential low-voltage electrical device is designed to connect and disconnect control circuits. It serves as a commanding device in power-driven systems and finds extensive application in electrical automation control circuits.

The push button switch is primarily used to manually send control signals for controlling contactors, relays, electromagnetic starters, and more. Its key feature lies in its installation within operating machinery and instruments, where it remains in its initial free state position for most of the time. It only transitions to a second state or position under external force when required. Once the external force is removed, the switch effortlessly returns to its initial position, thanks to the action of the spring mechanism.


Data Sheet



Product Name
metal push button switch
Model
QN12-A4
Electric parameter
2A/36VDC
Operation temperature
-20℃~+55℃
Switch combination
1NO
Operation type
momentary
Waterproof grade
IP65、IK08
Led life
without led

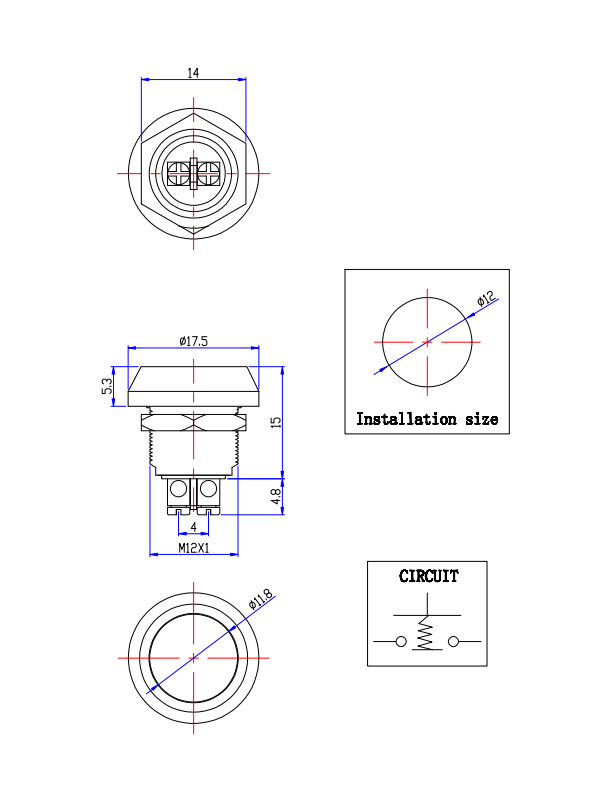

Drawing


drawing

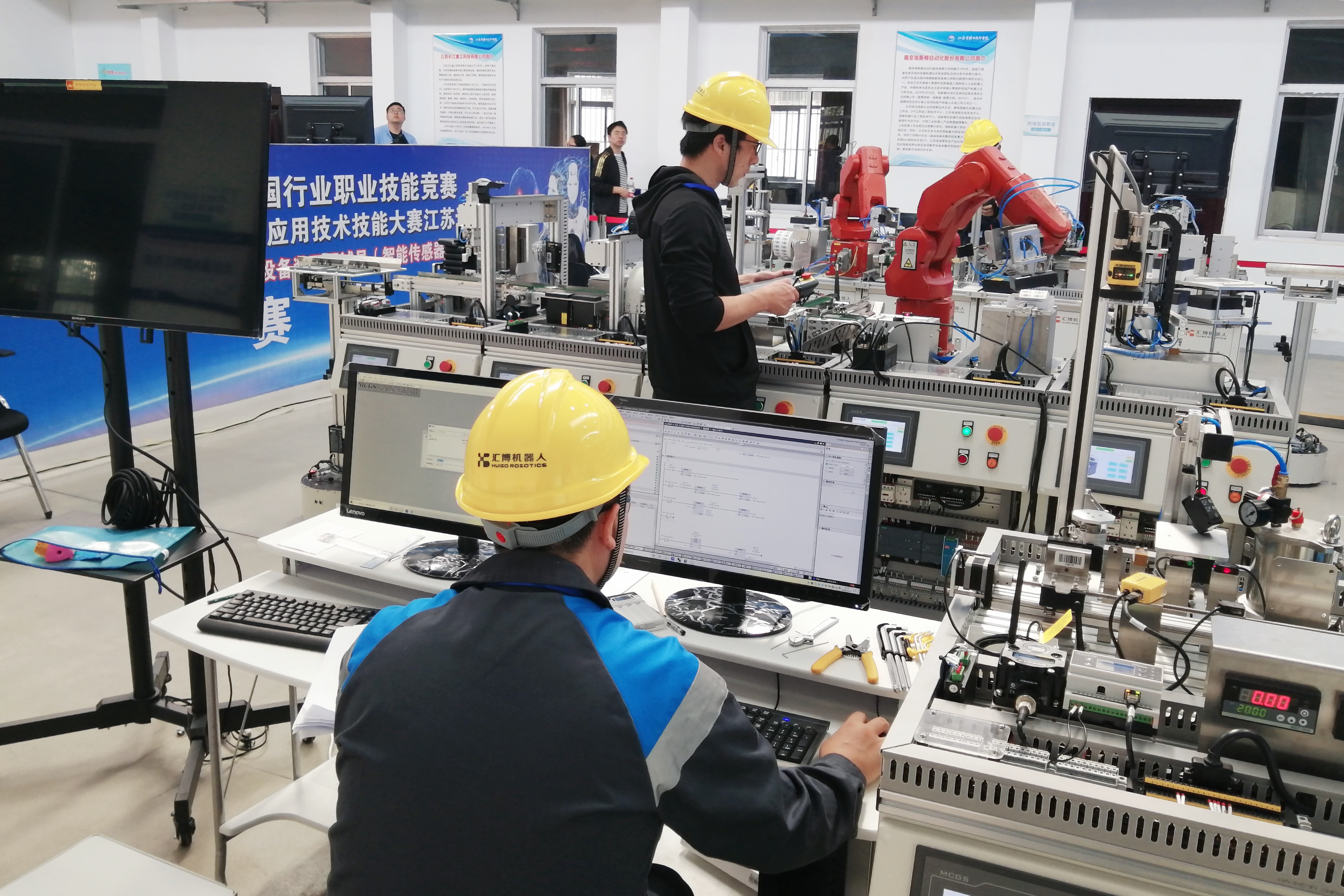

Application


application
